Hygienic Air Conditioner 800W, 316L Stainless Steel IP66 230V RS485
- Material
- IP Rating
- Voltage
- kW Rating
Standards & certifications
IP66Dust-tight · powerful jets

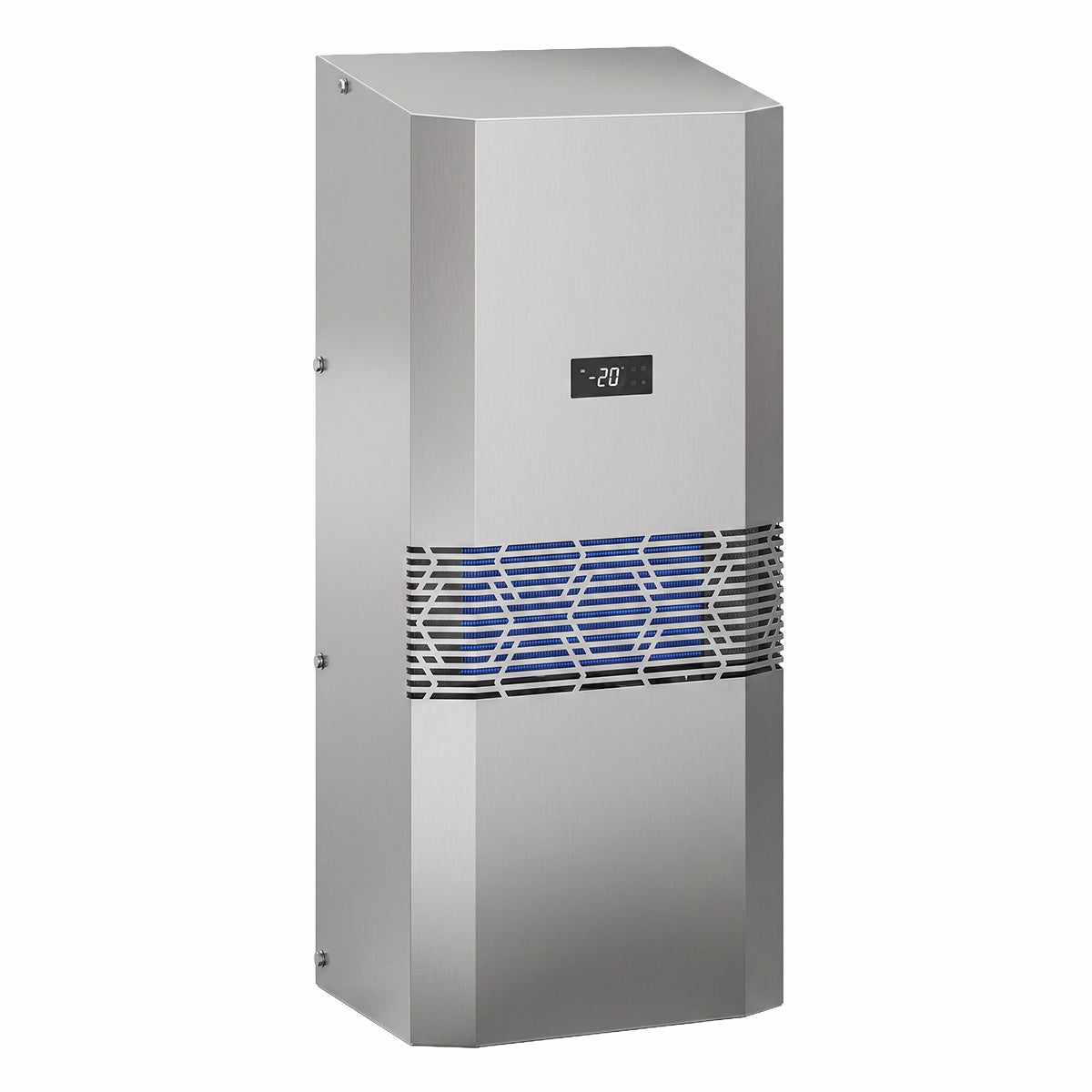

Hygienic Air Conditioner 800W, 316L Stainless Steel IP66 230V RS485
IP Enclosures introduces a premium range of Hygienic Line Air Conditioners, engineered for reliable cooling of electrical cabinets. These units are suited to food, beverage and pharmaceutical applications where compliance with strict hygiene standards is critical. Designed for door or side-panel mounting, they deliver high cooling performance, operational reliability and improved energy efficiency. The use of natural refrigerant R290, with a low global warming potential of GWP = 3*, helps reduce environmental impact and supports lower carbon dioxide emissions. Manufactured in Italy to high quality standards, the Hygienic Line Air Conditioners are designed for durability, reliable operation and consistent cooling performance in demanding hygiene-sensitive environments.
*Based on the 6th Assessment Report adopted by the Intergovernmental Panel on Climate Change (IPCC). Source: 2024/573 (FGAS) Regulation.
HYGIENIC | WALL & DOOR MOUNTED | IP66 | NEMA 4x 800 Watt
- Protection: IP66 NEMA 4x (enclosure side); IP34 (ambient side).
- Standards (& Conformities): IEC/EN 60529, Machinery Directive 2006/42/CE, EMC Directive 2014/30/EU, EN 60335-1:2012/A15:2021, EN 60335-2-40:2003/AC:2010, EN 12735-1:2020, CISPR 14-1:2020, CISPR 14-2:2020, EN 55014-1:2021, EN 55014-2:2021, IEC/EN 61000-3-2 (incl. amendments), IEC/EN 61000-3-3 (incl. amendments), IEC/EN 61000-3-11:2019
- Casing: 2.0mm Grade 316L Stainless Steel; Scotch-brite. Slanted roof design. Corrosion-resistant.
- Door: Built-in alarm; RS485 Interface (Standard).
- Seal: FDA-approved blue silicone. Supplied as standard.
- Condensation Evaporation System: Dust-proof condenser with anti-corrosion treatment for longevity and easy maintenance. Supplied as standard.
- Lifting Kit: For safe and quick installation. Supplied as standard.
Features Unit IP-ACHWM080
| Power supply V/Hz | 230V 1N 50Hz |
| Dimensions HxWxD mm | 808x355x250 |
| Power consumption W | 430 |
| Nominal current A | 2.4 |
| Cooling capacity W | 800 |
| Thermal power released into the environment W | 1230 |
| Air flow (free suction) m³/h | 310 |
| Room Temperature Range °C | +15°C / 48°C |
| Operating Temperature Setting Range °C | +25°C / 45°C |
| Protection degree EN60529 (ambient side) | IP34 |
| Protection degree EN60529 (enclosure side) | IP66 NEMA 4x |
| Coolant (Refrigeration circuit with natural gas) | R290 - 90g (Ecological Refrigerant gas with GWP=3) |
| Casing / Steel type | 316L Stainless Steel; Scotch-brite |
| Door | Built-in alarm; RS485 Interface (Standard) |
| Seal | FDA-approved blue silicone |
| Condensation evaporation system | Supplied as standard |
| Lifting kit | Supplied as standard |
| Net weight Kg | 30 |
| Gross weight Kg | 34 |
Conformity / Certifications
- EN 60529: Degrees of protection provided by enclosures.
- CE Certificate of Compliance: Machine Directive: 2006/42 CE, Electromagnetic Compatability (EMC) Directive: 2014/30/EU, Tubes for Piping Systems: EN 12735-1:2020, Safety of Household and Similar Electrical Appliances: EN 60335-1:2012/A15:2021, EN 60335-2-40:2003/AC:2010, Electromagnetic Compatability: CISPR 14-1:2020, CISPR 14-2:2020, EN 55014-1:2021, EN 55014-2:2021, EN 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021+AC:2022, EN 61000-3-11:2019.
- UKCA Certificate of Compliance.
- IEC / IECEE CB Scheme Test Certificates of Compliance: Certificate No. DK-179677-UL. Report Reference No. 25-4791570959-1-1-0-EMC. Issued Date: 2025-10-08.
- UL Certificate of Compliance: UL-US-26106079-0. Report Reference: SA46438-20260507. Issued Date: 2026-05-11.
- CSA Certificate of Compliance: UL-CA-2677967-0. Report Reference: SA46438-20260507. Issued Date: 2026-05-11.
- Products are manufactured to Quality, Safety and Environmental Standards.
