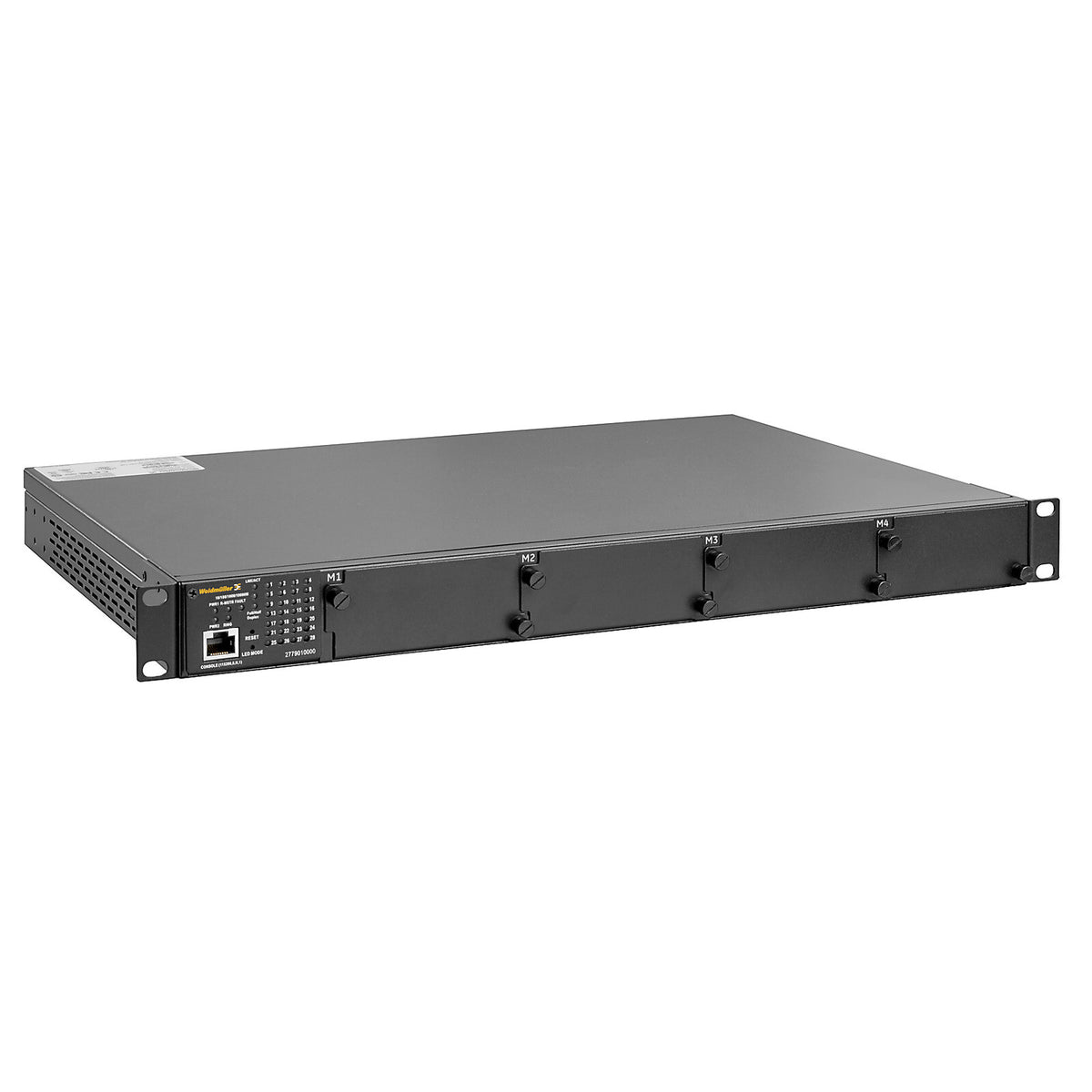

Modular 19-inch Rack Mount Managed Switch, Layer 2, 4 Slot up to 28 Ports, IEC 61850-3, 110/230V AC/DC - IE-SW-SL28M-HV

Weidmüller IE-SW-SL28M-HV modular Layer 2 managed switch from the SubstationLine range, certified to IEC 61850-3 and IEEE 1613. A 19-inch rack-mount 1U chassis with four media module slots — you build the port configuration you need, up to 28 ports, from Fast Ethernet through to 10-Gigabit. The HV variant runs from a 110/220 V station supply. Media interface modules are ordered separately.

• Form factor: 19-inch rack mount, 1U, modular chassis
• Slots: 4 media module slots (M1, M2, M3, M4), seven module types supported
• Ports: up to 28, depending on modules fitted
• Speed: Fast Ethernet, Gigabit and 10-Gigabit Ethernet
• Substation standards: IEC 61850-3, IEEE 1613
• Redundancy: STP, RSTP, MSTP, O-Ring, PRP (Parallel Redundancy Protocol)
• Supply voltage: 110/220 V DC (100…370 V DC) or 110/220 V AC (100…240 V AC), two isolated redundant inputs
• Operating temperature: −40 °C to +85 °C
• Dimensions (W x H x D): 440 x 44 x 325 mm
• Weight: 6,450 g
• Protection degree: IP30
